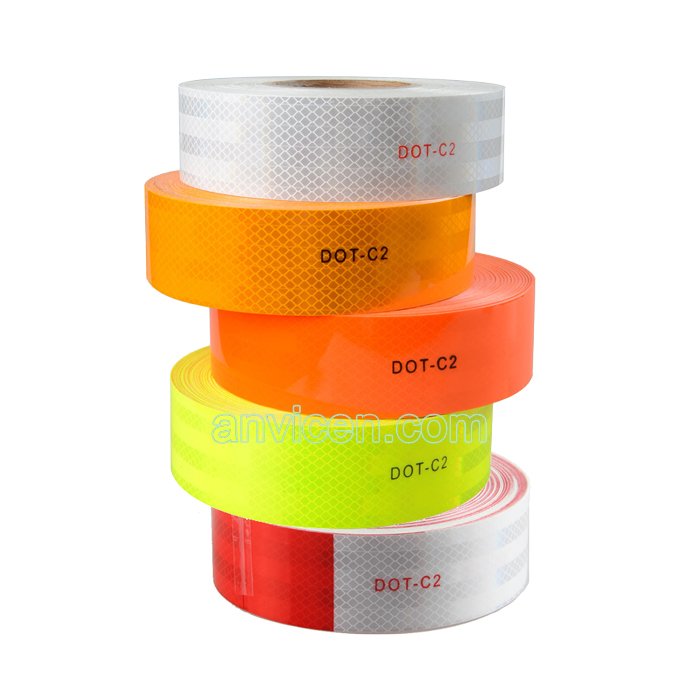

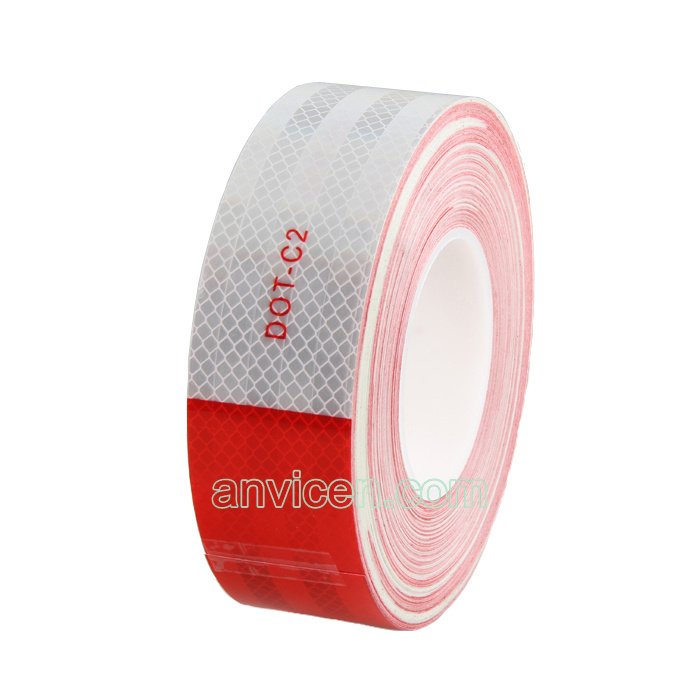

Diamond Grade DOT-C2 Reflective Tape For Vehicles Red6''/White6''

Diamond Grade Reflective Tapes are highly retroreflective micro prismatic markings to be enhanced visibility and detection for vehicles. They are applied to the sides and rear of vehicles in continuous stripes. The conspicuity reflective tapes are strong and rigid with a high-performance aggressive adhesive that sticks securely to trucks, trailers, flatbeds, tankers, tractors, rail cars, school buses, and other emergency vehicles. It is easy to apply and non-corroding.

Additional information

Model Number



50mm x 45.7m(50 yards), customized width






Red 6'' / White 6''


Aggressive pressure sensitive adhesive


5 years

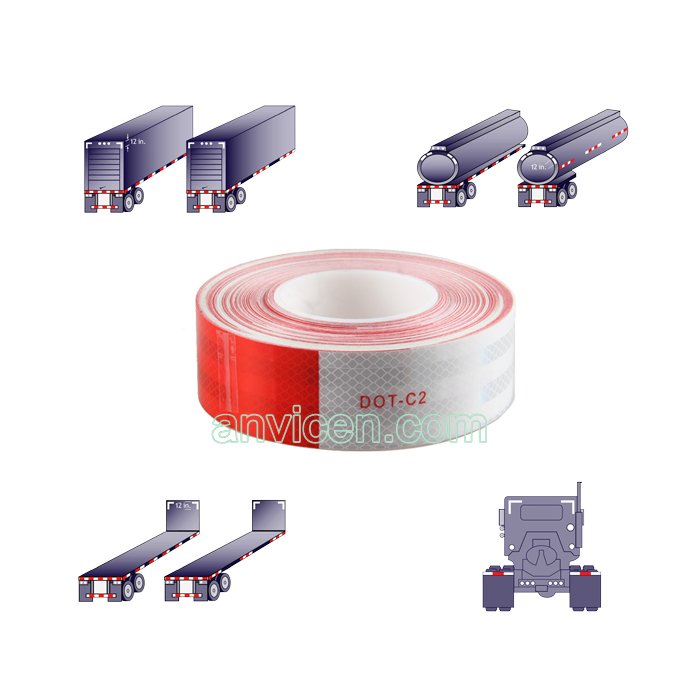

Applied to the sides and rear of vehicles to enhance visibility

Product Details:

The micro prismatic markings of reflective tape are high brightness and wide angularity to enhance visibility and recognition by drivers. They are applicable to the sides and rear of vehicles to have a safety warning effect for the long-haul in the dark of night, especially when the vehicle is turning or crossing roadways. The corrosion-resistant material helps the vehicle markings resist aging and weathering. The easy-release liner makes installation quick and available in convenient rolls or kiss-cut pieces on a roll.

Daytime Color and Luminance of Reflective Tape:

Color Items Testing data Requirement
Red Chromaticity


(0.638, 0.335) Covered in the following square



Luminance factor 0.07 0.02~0.15
White Chromaticity


(0.314, 0.332) Covered in the following square



Luminance factor 0.49 ≥0.27
Conclusion: Meet requirements.


Coefficient of Retroreflection:

Reflective Tape Coefficient of Retroreflection cd – 1x-1 – m-2
Entrance angle Testing data Requirement
Red 0.2o -4o 170 65
15o 143 48
30o 124 30
0.5o -4o 88 27
15o 100 20
30o 55 13
1o -4o 12 5.2
15o 15 4.1
30o 11 3
White 0.2o -4o 768 360
15o 622 265
30o 490 170
0.5o -4o 349 150
15o 372 111
30o 235 72
1o -4o 43 35
15o 52 28
30o 36 20

Conclusion: Meet Coefficient of Retroreflection requirements.

Reflective Tape Features:

  1. Available in DOT-C2 Mark and ECE Mark
  2. High brightness and wide angularity
  3. Aggressive adhesive, easy to remove the liner
  4. Non-metallic construction, non-corroding.
  5. Durable, good performance in extreme weather
  6. Available in rolls, or kiss-cut pieces on a roll.


More Details:
Sample: Free samples available, freight cost paid by buyer

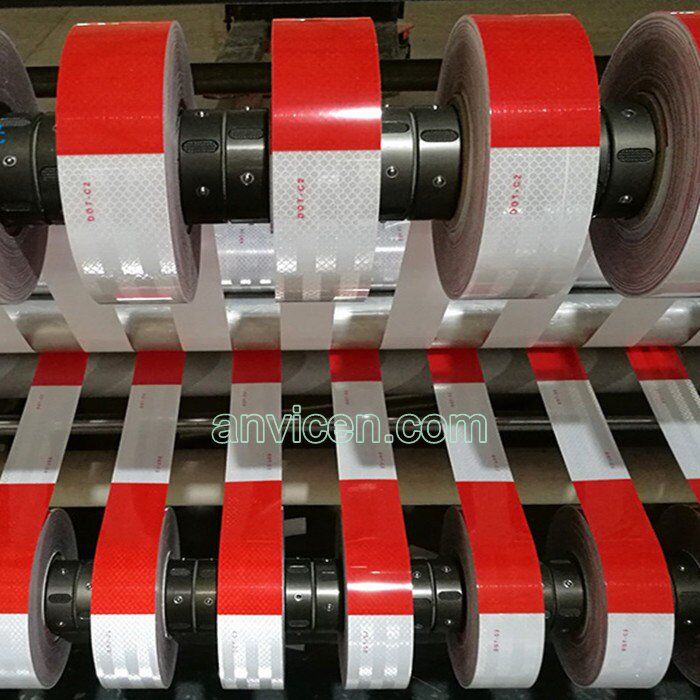

Mass production lead time: 3 weeks more or less, base on the quantity of the order

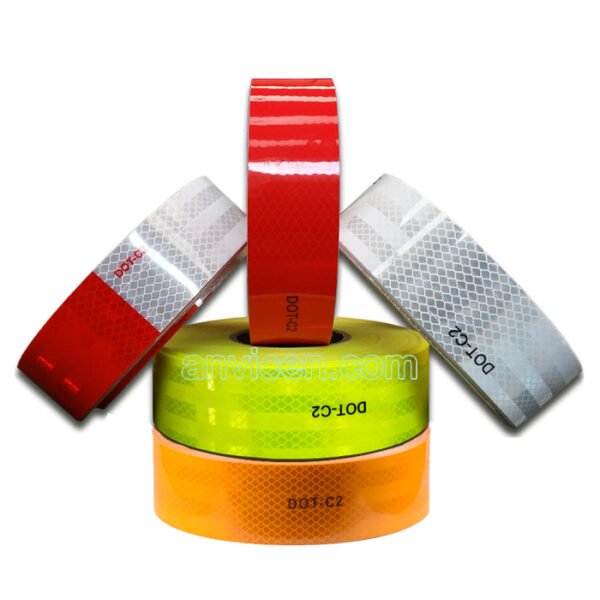

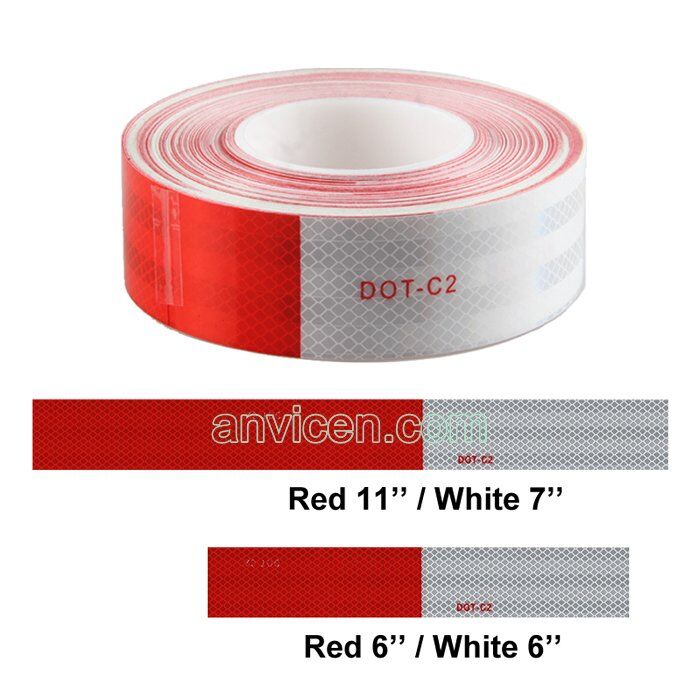

Color: red 11’’/white 7’’, red 6’’/white 6’’, fluorescent lemon green, white, red, amber, orange
Terms of payment: Wire Transfer, Western Union, etc.
Place of Origin: Made in China
